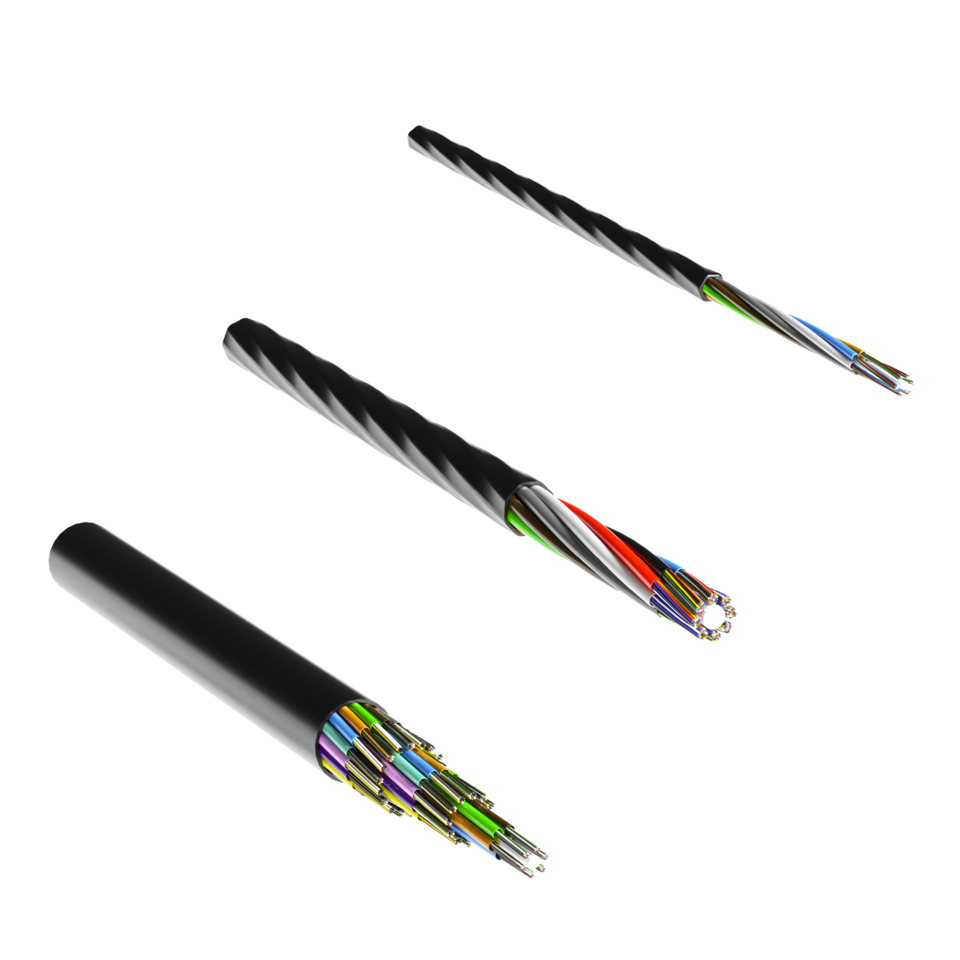

TOL4019022+C

Viper Micro Cable

12-432 fibers G657A1 TIA598

Up to 432 fibers
Super slim design
Excellent installation performance
Unique design with robust inner tubes that do not kink
Temperature range from -45 to +70°C
Excellent bend performance, ≥70 mm
Easy to prepare and identify fibers
Ultra low attenuation in cable

Talk to an expert

For illustration only. Color code may vary.

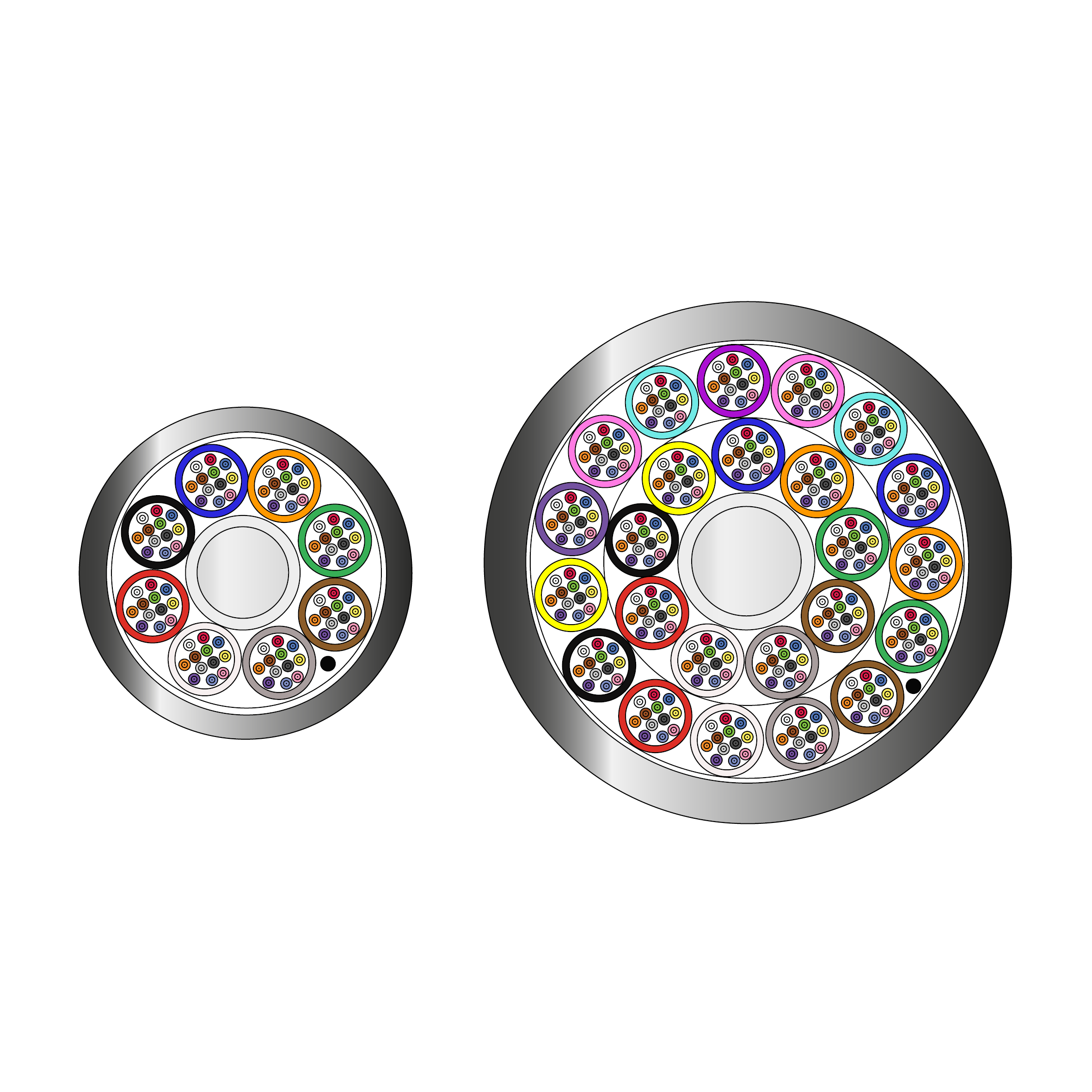

1. Primary coated fiber: Silica, acrylate

2. Loose tube: PA

3. Central strength member: Glass fiber reinforced plastic, PE

4. Slit up yarn

5. Wrapping: Water blocking yarns

6. Sheath: Polyethylene, halogen-free

Black fillers can replace empty white tubes.

Temperature, Operation [°C]

-45 to +70

Temperature, Handling [°C]

-15 to +50

Temperature, Storage [°C]

-45 to +70

Fiber Type

G657A1

Attenuation @Wavelength [nm]

1310/1383/1550

Attenuation Typical

0.32/0.32/0.18

Attenuation Max

0.38/0.38/0.23

Color

Black Sheath

Conformance

Fiber parameters and tests according to the IEC series 60793-2 and 60793-1. Mechanical and environmental tests in accordance with Family Specification IEC 60794-5-10.

Test standards, conditions and requirements:

Operational temperature: IEC 60794-1-22 Method F1; max attenuation 0.05dB/km*
Storage temperature: IEC 60794-1-22 Method F1; max attenuation 0.15dB/km* reversible
Ageing: IEC 60794-1-22, Method F9; 168h@85°C,+2 cycles, no attenuation after test
Water blocking: IEC 60794-1-2, Method F5C, 3m sample, 1m head of water, no leakage after 24 hours
Bend radius: IEC 60794-1-21, Method E11B; 4 turns, 3 cycles, max attenuation 0.05dB*
Installation tensile load: IEC 60794-1-21, Method E1; max fiber tension 0.6%, reversible attenuation
Crush: IEC 60794-1-21, Method E3; 1 minute load, 100mm plate, no attenuation after test
Impact: IEC 60794-1-21, Method E4; 3 different places, max attenuation 0.1dB* after test

* All attenuation measurements performed @ 1550nm

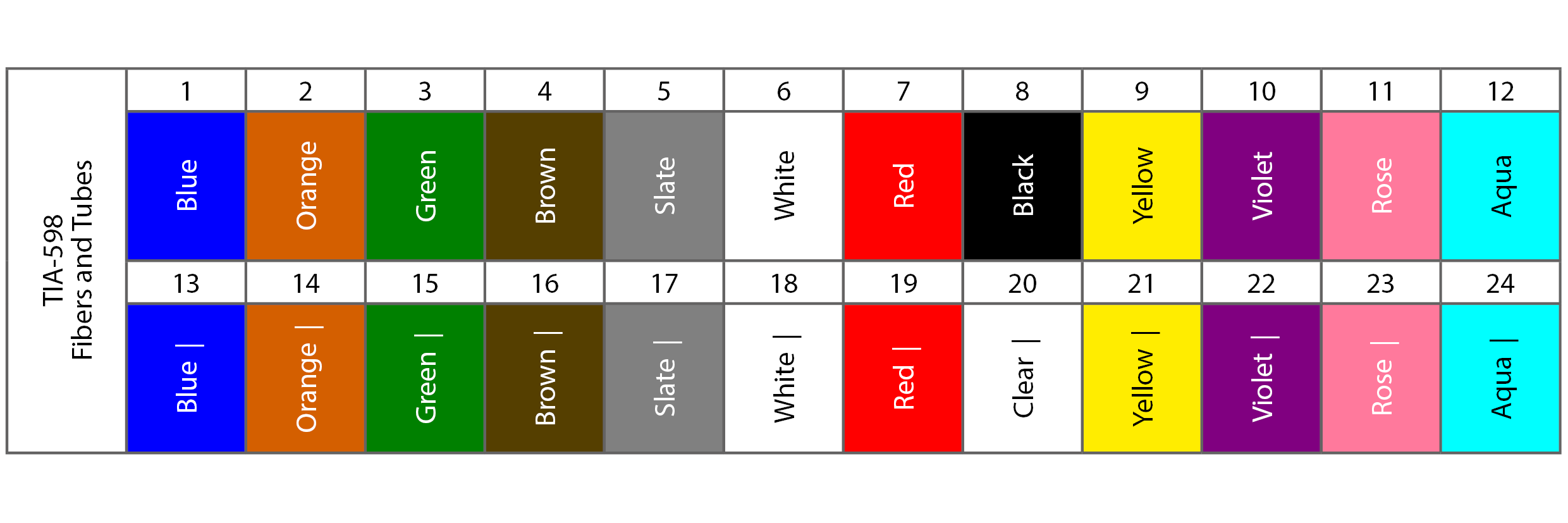

Color code

TIA598

Water Blocking

Longitudinal water blocking according to IEC 60794-1-2-F5C

Average Attenuation [dB/km]

0.33/0.33/0.21

Marking

The cables are length marked in meters, and the tubes and fibers are color coded according to TIA598 (Bellcore).

Installation Notes

Typical installation performance:

Ducts ID 8-10 mm, cable OD ≤6.7 mm: 2000 m
Ducts ID 12 mm, cable OD ≤8.0 mm: 2000 m
Ducts ID 15-16 mm, cable OD <11 mm: 2000 m, cable OD 11-12 mm: 1500 m

Installation performance verified on Hexatronic test track, according to IEC 60794. Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.

If the cable is installed by blowing the temperature shall be -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit.

Ordering Info

Supplied lengths: 2, 4, 8 km
